When designing control panels and human-machine interfaces, the user experience often comes down to the fingertips. While visual design draws the user in, tactile feedback dictates how intuitive, responsive, and satisfying a device feels to use.
One of the most effective engineering techniques used to elevate this tactile experience is overlay embossing. By reshaping the front panel material, designers can transform a flat, lifeless surface into an ergonomic, highly responsive interface.
Here is a practical guide to how this forming technology works, the different types available, and why it is an essential finishing process for modern industrial design.
Overlay embossing is a mechanical forming process that creates a raised, three-dimensional profile on the graphic overlay (typically polyester or polycarbonate) of a control panel or keypad.
Instead of relying solely on flat graphic layers, embossing physically alters the substrate to create distinct tactile boundaries, contours, and shapes. This process guides the user's fingers, improves activation accuracy, and enhances the overall aesthetic and functional quality of the interface.

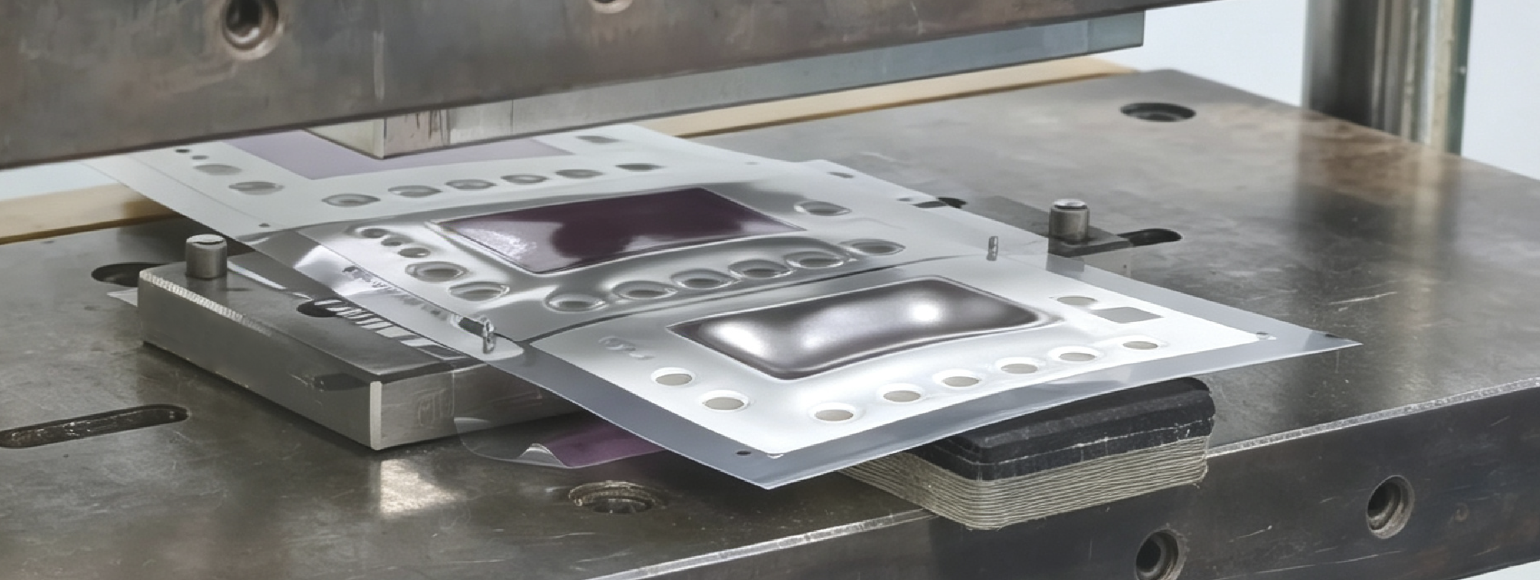

While exact methods vary depending on tooling and material, the typical embossing workflow involves:
•Tooling Design & Preparation — Custom male and female metal dies are engineered to match the exact dimensions and profiles of the desired key shapes.
•Material Alignment — The graphic overlay film (usually PET or PC) is precisely aligned beneath the embossing press.
•Controlled Heat & Pressure — Applying precise heat and mechanical pressure permanently deforms the substrate material into the mold cavity.
•Cooling & Setting — The material cools under pressure, locking the 3D shape into place with high dimensional stability.
•Quality Verification — The embossed sheet is inspected for height consistency, structural integrity, and alignment with underlying component layers.

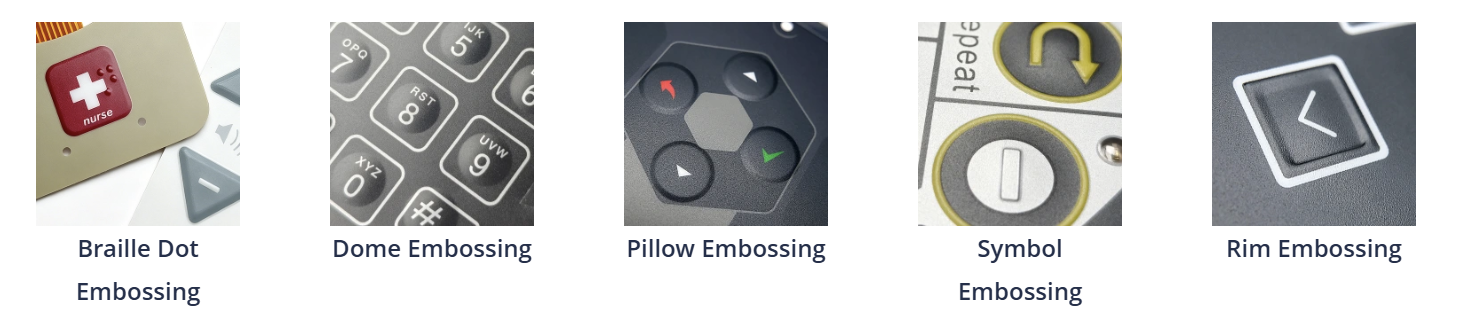

Different applications require different ergonomic and functional responses. Here are the five primary embossing styles used in modern manufacturing:
Rim / Border Embossing: Forming a slightly raised ridge along the key perimeter. Highlights tactile boundaries. Guides fingers to the exact center. Drastically reduces accidental presses.
Pillow Embossing: Creating a fully and evenly raised pad across the entire key area. Enlarges finger contact surface. Makes every press effortless and comfortable.
Dome Embossing: Shaping into a standard round dome profile. Delivers a firmer and snappier tactile snap through the material's own resilience, without necessarily requiring internal metal domes.
Graphic / Symbol Embossing: Raising the specific outlines of icons, functional symbols, or logos. Synchronizes visual symbols with tactile touch. Enables self-explanatory operation.
Braille Dot Embossing: Arraying precisely engineered tactile micro-dots. Strictly adheres to accessibility standards. Designed for visually impaired users. Makes your product universally inclusive.
Incorporating embossing into your control panels offers profound benefits for both end-users and manufacturers:
•Enhanced Usability & Blind Operation — Tactile cues allow users to operate control panels without constantly looking at the screen, which is critical in medical, automotive, and industrial environments.
•Elimination of Accidental Triggers — Raised rims and distinct domes prevent adjacent key actuation, ensuring high-precision input.
•Elevated Aesthetic Appeal — 3D contours give flat panels a premium, professional, and ergonomic look that stands out in the market.
•Durability & Longevity — Properly engineered embossing maintains its tactile snap and structural integrity even through millions of actuation cycles.
For product designers and engineers, overlay embossing bridges the gap between digital efficiency and physical ergonomics. It offers short development cycles, reliable repeatability, and the flexibility to customize tactile feedback for specific industrial, medical, or consumer electronics applications.
It is a technology that aligns with modern manufacturing priorities: precision, accessibility, and user-centric design.
Embossed overlays are widely adopted across demanding sectors including medical devices, industrial machinery, aerospace control panels, and consumer appliances where reliable tactile feedback is non-negotiable.
