Mechanical support Provides a flat mounting base for membrane switches to prevent deformation when pressed.
Heat dissipation Aluminum's thermal conductivity helps to disperse the heat generated by circuits (such as backlight LEDs or high-frequency applications).
Electromagnetic shielding It can reduce external electromagnetic interference (especially for sensitive electronic equipment).
Lightweight Compared to steel plates, aluminum plates offer sufficient strength while reducing weight.
Installation and fixing The aluminum plate can be pre-drilled or designed with a snap-fit structure for easy overall installation onto the equipment casing.
Aluminum sheet vs. stainless steel sheet Stainless steel is more corrosion resistant but heavier and more expensive.
Aluminum sheet vs. plastic lining Plastics (such as PC/ABS) have good insulation properties but poor heat dissipation and rigidity.
Aluminum sheet vs. FR4 fiberglass sheet Fiberglass boards are suitable for high-frequency circuits but are brittle.
Industrial control panel Vibration resistant and oil resistant.
medical equipment Easy to clean and disinfect, meeting hygiene standards.
In-vehicle central control It is resistant to high and low temperatures and is lightweight.
Home appliance panel Aesthetically pleasing and durable (such as microwave ovens and coffee makers).
As membrane switch panel manufacturers, we build this product on aluminum, but aluminum is one of four backing materials in common use, and the choice changes how the finished panel behaves. Stainless steel provides the highest corrosion resistance, yet it is heavier and more expensive and makes the whole unit harder to handle. Plastic linings such as PC or ABS insulate well and cost little, but they hold heat and flex when a key is pressed repeatedly. FR4 fibreglass suits high-frequency circuit work, though it is brittle and can crack under shock or an over-tightened screw. Aluminum sits between them: enough stiffness to keep keys flat, good heat spreading, useful shielding, and a weight the equipment does not have to carry. If the panel lives in aggressive corrosion and weight is not a concern, steel is still the right answer; if it never sees heat or interference, plastic is cheaper.

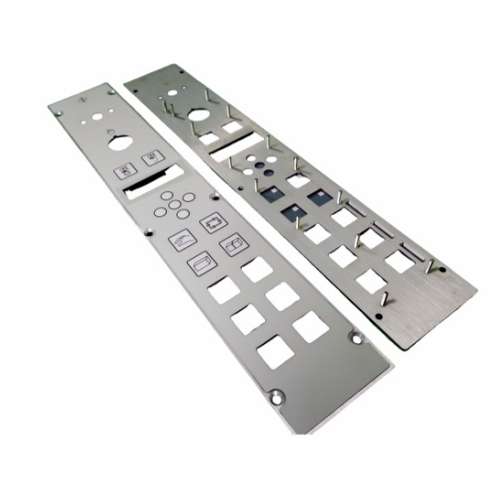

| Construction | Membrane switch laminated to an aluminum backing plate |
| Backing plate | Aluminum, machined to your panel outline |
| Mounting | Pre-drilled studs matching your casing pattern |
| Panel rigidity | Keeps keys flat and resists deformation under pressure |
| Heat path | Carries heat away from backlight LEDs and circuit areas |
| Shielding | Reduces incoming electromagnetic interference |
| Weight | Lighter than an equivalent steel plate |
| Front graphics | Custom graphic overlay printed with your artwork |
| Circuit | Printed membrane circuit made to your key layout |
| Backlighting | LED lighting for keys that must be read in dim conditions |
| Equipment types | Machine fronts, medical housings, in-vehicle consoles, appliance panels |
Model matching is where most interface projects succeed or stall. Send us your panel dimensions, actuation requirements, sealing and ESD needs, and operating environment, and our technical team will recommend the construction that fits — membrane switch, graphic overlay, or touch panel — together with the tactile, backlighting, and integration options open to you. We stay involved after the order as well, assisting with troubleshooting, installation, and commissioning so your units move into production without surprises.
Yes. This is a custom membrane switch, so the key layout, panel outline, stud positions and cable exit are all made from your drawing rather than chosen from a standard list. Send the front-panel drawing with the key positions and the housing opening, and we build the switch and the plate to suit it. If your layout is still being finalised, tell us which dimensions are fixed and which can still move.
It can. Where the housing already exists, we work from the current panel drawing and match the outline, stud positions and cable exit to the opening, so the new unit mounts where the old one sat. A measured drawing or a sample of the existing panel helps us line up the fixing points and the tail exit precisely.
The front carries a custom graphic overlay printed with your artwork: key legends, colour blocks, logos, warning text and window areas, arranged to match the key layout underneath. Artwork is checked against the panel drawing before printing so legends and windows line up with their keys and nothing sits off-centre. Vector files are the easiest starting point if you have them.
Yes. The tactile membrane switch layer produces the key feel, and the plate sits behind it rather than damping it. Because aluminum keeps the panel flat and stiff, the force needed at one key stays close to the force needed at the next, which is what operators notice over a long shift. Tell us the feel you want and we build the membrane layer around it.
Aluminum-backed panels are used on equipment that sees vibration, oil and frequent cleaning, including the industrial control panel fronts of machine tools and process equipment. How much water and dust the finished unit tolerates depends on the sealing construction around the membrane and the gasket under the plate, so describe your washdown routine, cleaning chemicals and outdoor exposure and we will recommend the build that suits it.
The plate is machined to the same drawing for every run and the membrane layers are laminated onto it, which is what keeps the panel flat and the key travel even across a batch. Finished units are pressed across the full key field before they leave the line, and the printed graphics are inspected against the approved artwork at the same time.
