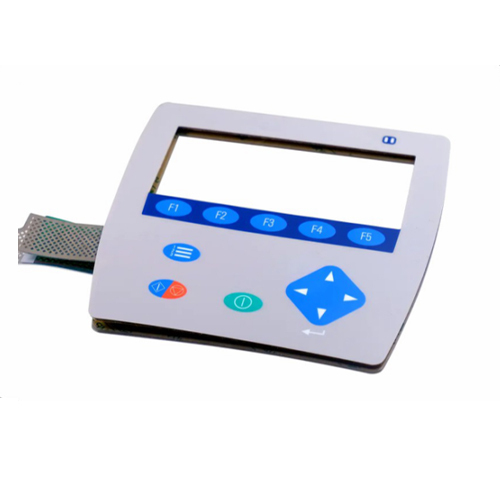

Membrane Switch with ESD Circuit

The combination of membrane switches and electrostatic shielding is a common protective design for electronic devices, primarily used to prevent the effects of electrostatic interference and electromagnetic interference (EMI) on sensitive electronic components.
electrostatic shielding layer Typically made of conductive materials (such as copper foil, conductive fabric, or conductive coating), it is used to prevent electrostatic discharge (ESD) and electromagnetic interference.
Technological advantages
  • Improve equipment's ESD resistance (up to 8kV or higher).

  • Reduce electromagnetic radiation interference

  • Maintain the thin and light characteristics of membrane switches

  • It does not affect the feel or lifespan of the switch.
    Application areas

  • Medical device control panel

  • Industrial control equipment

  • Aerospace Instruments

  • Automotive electronic control systems

  • Human-machine interface for military equipment

  • Membrane Switch with ESD Circuit

Description

Shield Construction

  1. We start from the switch circuit layer — silver-printed contacts and traces on the base film, laid out to your key positions.
  2. The shield goes in as a layer of the stack: copper foil, conductive fabric or a conductive coating, laminated in during membrane switch manufacturing rather than fixed behind a finished panel.
  3. Where stack height is tight, the shield is screen-printed as a silver grid in the same printing pass as the circuit, which keeps the key area flat and uniform.
  4. Grounding traces run from the shield to a dedicated pad or tail, with the return path drawn short and kept clear of the signal lines.
  5. The printed layer goes on top with your legends, windows and colours, and we check shield-to-ground continuity before the panel is packed.

Specifications

Panel typeMembrane switch with an integrated electrostatic shield
ESD performanceUp to 8kV or higher, depending on construction
Signal circuitScreen-printed silver circuit on flexible film
Panel profileThin, flexible multi-layer laminate
Graphic overlayCustom printed to your artwork and colour reference
TerminationTail length and connector matched to your PCB layout
MountingAdhesive backing, die-cut to your outline drawing
Panel sizeBuilt to your drawing, no stock sizes
Typical marketsMedical, industrial, aerospace, automotive, military

Application Areas

  • Medical device control panels — the panel is the surface a gloved operator touches first, with the electronics sitting close behind it, so the shield absorbs the charge before it reaches patient-facing circuitry.
  • Industrial control equipment — machine HMIs and line-side enclosures, where an industrial control panel collects discharge from operators, tools and moving product.
  • Aerospace instruments — dry cabin air and composite structures make charge build-up routine, so cockpit and ground-support instruments benefit from a bonded shield.
  • Automotive electronic control systems — bench and in-vehicle modules where wiring loom handling and assembly friction push charge into the front panel.
  • Military human-machine interfaces — field equipment with sealed enclosures and limited service access, where an unexplained reset costs far more than the shield layer.

Grounding & Panel Integration

Grounding is the part of the job the panel cannot do on its own. Bring the shield to a short, low-impedance return on chassis or system ground, and bond it as close as possible to where the panel is mounted — a long, thin return path gives the charge somewhere to go, but not fast enough to protect what sits behind the switch.

Match the shield tail or ground pad to your connector and pinout so the assembly plugs in and can be reworked without cutting traces, leaving enough service loop without crossing the key area. Keep the shield return separate from sensitive analogue lines and from any pad that has to stay isolated. If the enclosure is painted or anodised, plan the bonding point on bare metal.

Technical Support & Model Matching

Model matching is where most interface projects succeed or stall. Send us your panel dimensions, actuation requirements, sealing and ESD needs, and operating environment, and our technical team will recommend the construction that fits — membrane switch, graphic overlay, or touch panel — together with the tactile, backlighting, and integration options open to you. We stay involved after the order as well, assisting with troubleshooting, installation, and commissioning so your units move into production without surprises.

FAQ

Q1. How does the shielding layer protect the circuit and the microcontroller?

Charge arriving at the panel surface meets the conductive shield instead of the signal circuit, and the grounding traces take it to the panel ground. The switch contacts and the microcontroller behind them never see the event, which is what prevents the random resets and latch-ups that appear on an industrial control panel in dry, high-static conditions. The shield layer stays electrically separate from the switch circuit.

Q2. Should we choose a printed silver grid or a laminated aluminum foil shield?

A printed silver grid is laid down in the same membrane switch manufacturing pass as the circuit, so it adds almost no thickness and suits panels with tight stack-height limits. A laminated aluminum foil layer gives one continuous conductive surface and is the usual choice when the panel also has to block radiated interference. Tell us where the panel is going and how much room you have behind it, and we will match the construction to both.

Q3. Will the shield change the tactile feel or the thickness of the panel?

No measurable change. The shield is laminated inside the existing layer stack, so there is no extra plate behind the panel and no extra depth behind the bezel. If you are fitting a shielded panel into an enclosure designed around an unshielded one, the outline, tail exit and connector position carry over — check them against your drawing before the outline is finalised.

Q4. Can the panel be built to our own dimensions, key layout and connector?

Yes. Every one of our custom membrane switches is built to your drawing rather than a stock outline. Send the panel outline, key positions, tail exit direction and connector pinout, and we return a drawing for approval before tooling. Irregular outlines and window cut-outs are handled at the die-cutting stage, so unusual shapes are not a problem.

Q5. What graphics and finishes can be printed on the overlay?

The graphic overlay is printed to your artwork — brand colours, key legends, warning text, windows and indicator areas. Finishes are chosen to suit the application: a matte or anti-glare surface stays readable under bright plant lighting, while a gloss finish gives a sharper look on equipment that faces customers. Send a colour reference and we will match the printed result to it.

Q6. How do we decide which discharge level to specify?

Start from the level your product has to survive in your own ESD testing, then tell us where the operator touches the panel and what the environment is like — dry air, synthetic flooring and moving product all raise the charge that reaches the front surface. The shield construction is matched to that figure, so it is worth settling before the artwork is finalised.
